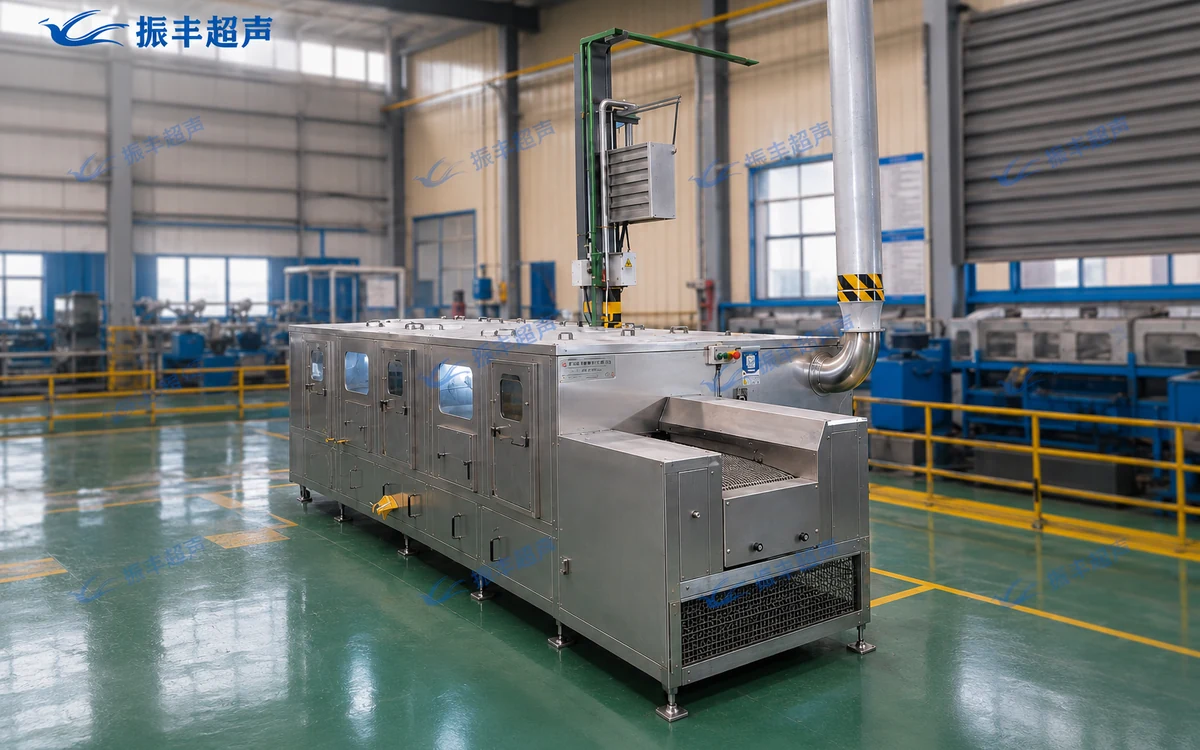

01ZFX-Y01A
Post-Isostatic Pressing Bag Cleaning & Drying Line
View application
Removes residual water from packaging bags before cutting, reducing manual handling and contact risk.
Discuss this application →Product Range
From Benchtop to
Full Production Lines
Standard models ship fast. Custom systems are our specialty — tell us your process and we engineer the solution.
★ Core Strength
Custom Non-Standard
Fully Automatic Industrial Cleaning Lines
Our flagship capability. Multi-stage automated cleaning systems with conveyor, robotic transfer, multi-tank ultrasonic + rinse + dry, PLC/HMI control. Designed completely around your production requirements. Widely used in semiconductor silicon wafer processing, automotive parts, powder metallurgy, and precision mechanics.
Multi-stage process
PLC / HMI control
Robotic transfer available
SUS304 / 316L
OEM / ODM
View Industry Case →
System Capabilities
Process StagesMulti-stage ultrasonic + rinse + dry
Transfer SystemConveyor belt / robotic arm optional
ControlPLC / HMI, full automation
Tank MaterialSUS304 / 316L stainless steel
Frequency20 / 25 / 28 / 40 / 68 / 80 / 120 kHz
ApplicationsSemiconductor, automotive, powder metallurgy, precision mechanics
StandardsOEM / ODM, CE certified, ISO9001
Lead TimeBased on spec — contact us for timeline
ZFD-RA Series
Automatic Modular Ultrasonic Cleaner
One-touch start with auto immersion, agitation, ultrasonic cleaning and lift-back. Single or multi-tank. 85 / 120 / 160 L capacities.
28 / 40 / 80 / 120 kHz
Up to 2400W
380VAC / 3φ
Technical Specifications
| Model | Outer Dim L×W×D (mm) | Capacity (L) | Ultrasonic (W) | Heating (W) | Voltage | Max Temp |
|---|---|---|---|---|---|---|
| ZFD-RA85 | 760×820×1555 | 85 | 1500 | 5000 | 380VAC/3φ | 80°C |
| ZFD-RA120 | 810×874×1675 | 120 | 1800 | 6000 | 380VAC/3φ | 80°C |
| ZFD-RA160 | 860×910×1796 | 160 | 2400 | 8000 | 380VAC/3φ | 80°C |
Work Freq28/40/80/120 kHz single; 28/68, 40/80, 40/120 kHz dual
Tank MaterialSUS304/316L (optional)
IP RatingIP21
ZFD-R Series
Integrated Industrial Ultrasonic Cleaner
Heavy-duty integrated unit for industrial surface particle and adhesive removal. Metals, plastics, auto parts, semiconductors. 40–160 L.
20–40 kHz
Up to 2400W ultrasonic
Up to 8000W heating
Technical Specifications
| Model | Outer Dim (mm) | Eff. Vol (L) | Ultrasonic (W) | Heating (W) | Voltage | IP |
|---|---|---|---|---|---|---|
| ZFD-R40 | 660×610×800 | 45 | 2000 | — | 220VAC/1φ | IP21 |
| ZFD-R85 | 760×600×750 | 85 | 1500 | 5000 | 380VAC/3φ | IP21 |
| ZFD-R120 | 810×650×800 | 120 | 1800 | 6000 | 380VAC/3φ | IP21 |
| ZFD-R160 | 860×700×850 | 160 | 2400 | 8000 | 380VAC/3φ | IP21 |
Work Freq20–40 kHz
StandardTimed start, auto scan, constant power, pump, basket, SUS304/316 body
OptionalLid, oil-water sep., auto heating, aeration, overflow protection
ZFF Generator Series
Ultrasonic Generator
10+ years R&D. IGBT full-bridge phase-shift, auto frequency tracking, constant power output, RS485 MODBUS RTU. Up to 3000W per unit.
15–40 kHz
110 / 220VAC
PLC / HMI ready
Technical Specifications
| Model | Freq Range | Max Power | Voltage | Mounting | Dimensions (mm) |
|---|---|---|---|---|---|
| ZFF-002 | 20–40 kHz | 3000W | 110/220VAC | Desktop | 370×290×130 |
| ZFF-003 | 15–40 kHz | 3000W | 110/220VAC | Vertical | 150×380×240 |
| ZFF-DP | 15–20 kHz | 2000W | 110/220VAC | Desktop | 390×350×130 |
Power AdjustIGBT full-bridge phase-shift, 10–100% stepless
Auto Freq TrackingStabilizes at optimal frequency
Constant PowerAdapts to varying loads
Remote ControlRS485 MODBUS RTU — PLC / HMI ready
ProtectionOverload, overvoltage, short circuit, no-load
ZFD-A Series
Desktop Ultrasonic Cleaner
Compact, smart LCD benchtop cleaner. 2–30 L. For labs, medical, jewelry, eyewear, precision parts. One-touch operation.
40 kHz
60–600W
Timer 0–99 min
Technical Specifications
| Model | Cap (L) | Ultrasonic (W) | Heating (W) | Freq | Temp (°C) | Timer (min) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| ZFF-A2 | 2 | 60 | 100 | 40 kHz | 0–80 | 0–99 | 2.6 |
| ZFF-A3.2 | 3.2 | 120 | 100 | 40 kHz | 0–80 | 0–99 | 3.5 |
| ZFF-A6.5 | 6.5 | 180 | 300 | 40 kHz | 0–80 | 0–99 | 5.8 |
| ZFF-A10 | 10 | 240 | 300 | 40 kHz | 0–80 | 0–99 | 7.9 |
| ZFF-A15 | 15 | 360 | 400 | 40 kHz | 0–80 | 0–99 | 10 |
| ZFF-A22 | 22 | 480 | 500 | 40 kHz | 0–80 | 0–99 | 13 |
| ZFF-A30 | 30 | 600 | 500 | 40 kHz | 0–80 | 0–99 | 14.9 |
DisplayLCD, one-touch start
Sweep FunctionEliminates standing waves
MaterialAnti-fingerprint brushed SS
Outer Dims (mm)150×140×100 to 500×300×200
